Underground Locate Metal Pipe Electric Cable Tracker Wire Fault Detectors are essential for modern 33kv and 35kv cable fault locating equipment. Electricity networks have had to become more flexible, reacting more quickly to the changes and needs of higher performance. Quickly locating a cable fault for repair is the top priority for avoiding lengthy restoration times.
This demand for flexibility is especially true where multiple generation sources occur, such as the intermittent power from renewables like solar and wind energy. While modern SMART grid technology can quickly identify faults in sub-stations, cable faults can still occur anywhere on the network.
Key Performance Indices:
• SAIDI: System Average Interruption Duration Index (Total duration of interruption per customer).
• SAIFI: System Average Interruption Frequency Index (Total number of customers interrupted).

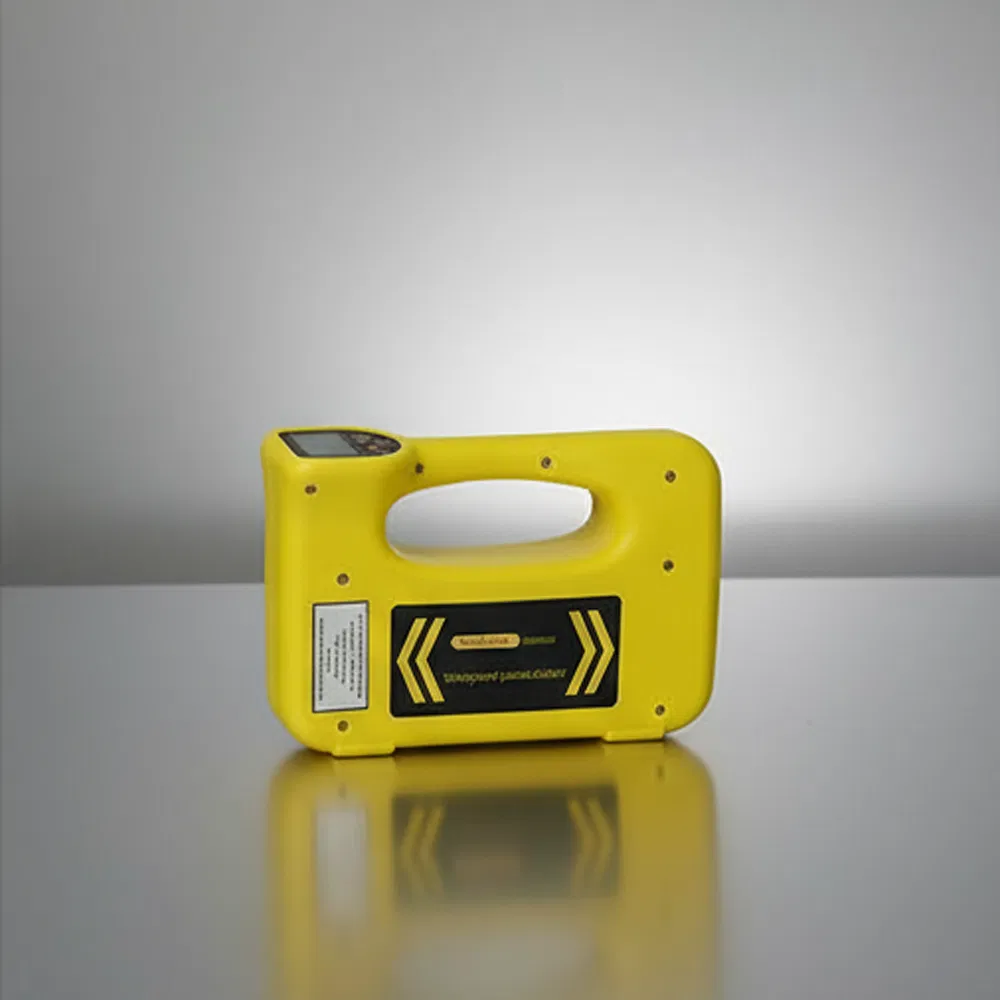

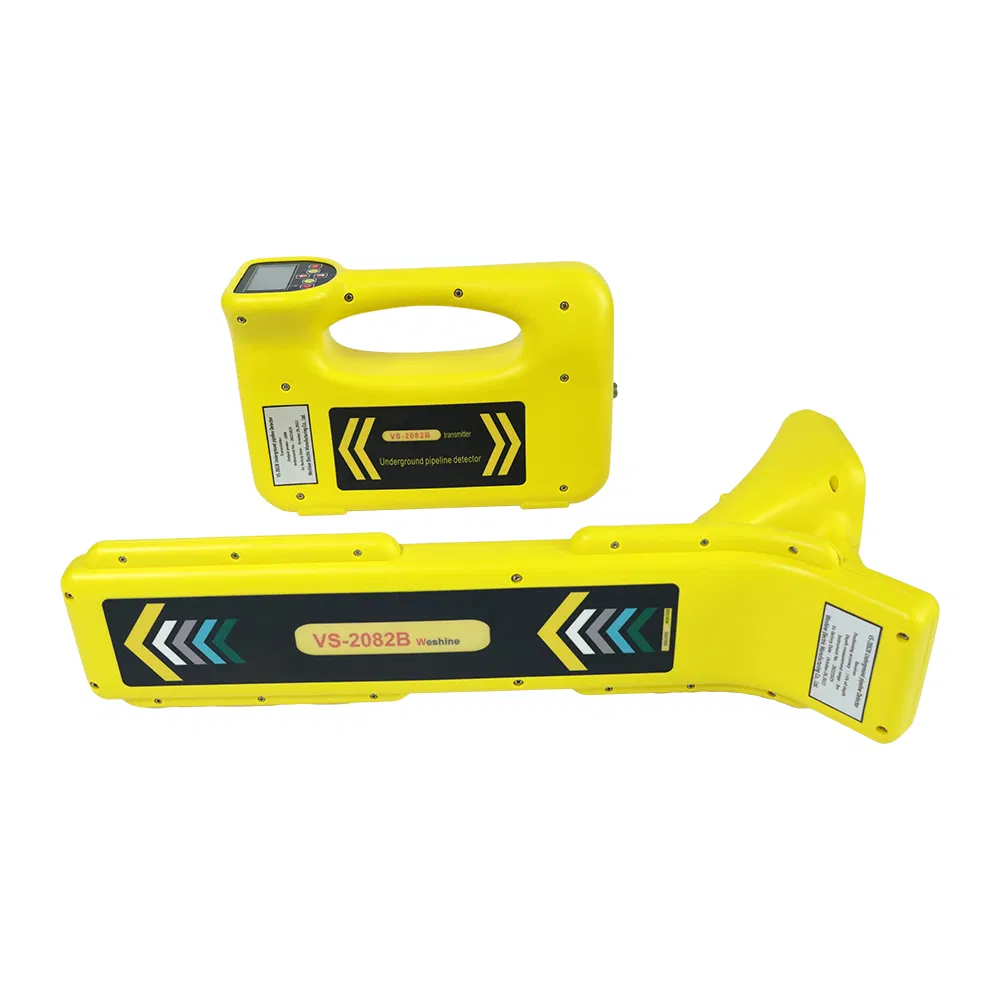

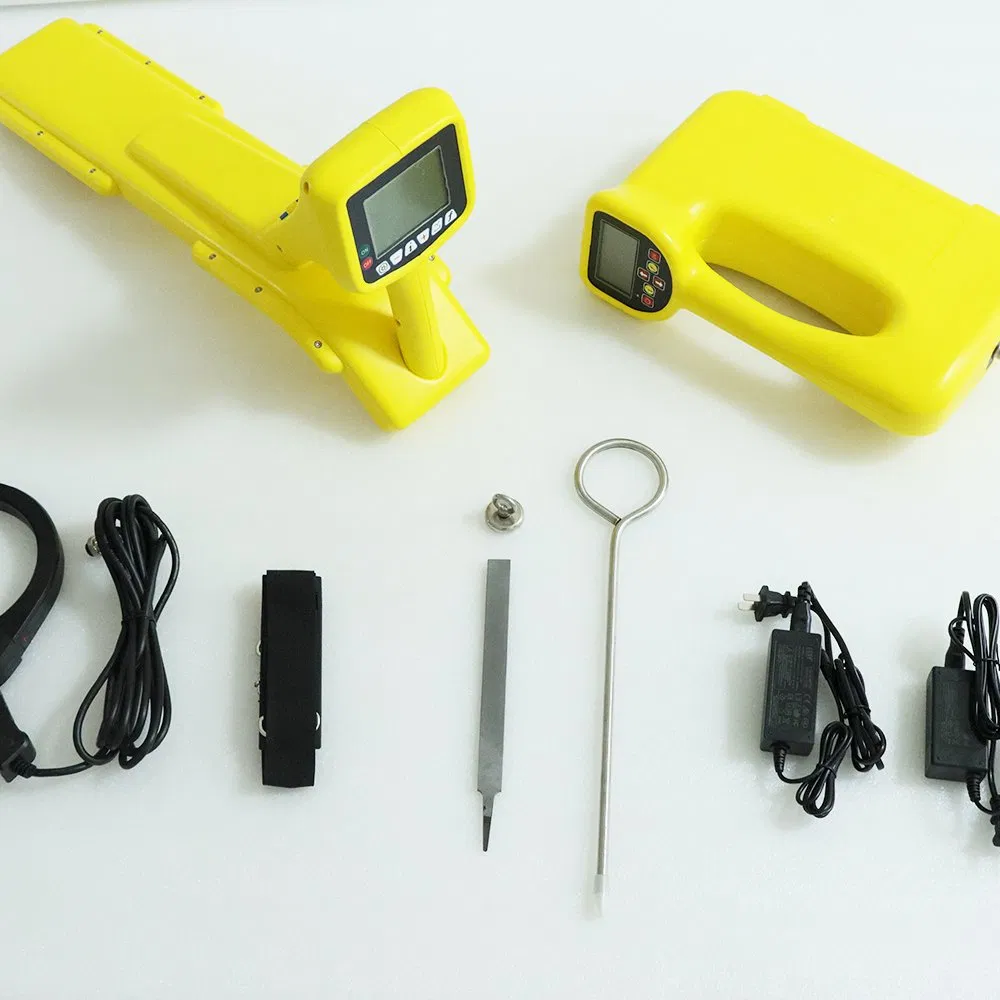

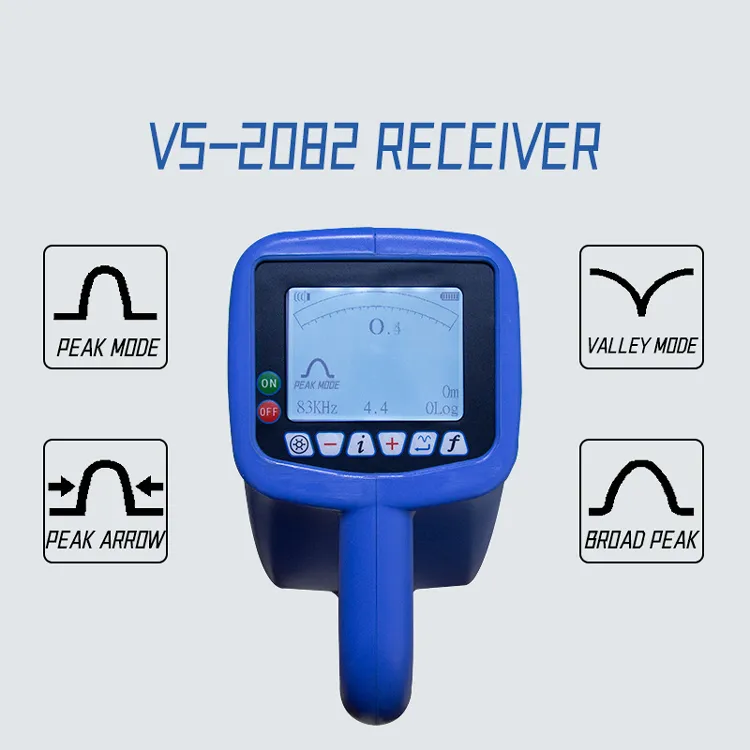

The Pipe Locator is specially designed to detect pipes, sondes, and telecommunication lines. This device detects buried power cables, CATV cables, gas and water pipes, sewer lines, telephone cables, and fiber optic cables with sheath. The Transmitter emits a signal, while the Receiver detects it to locate the relative position of the buried utility.

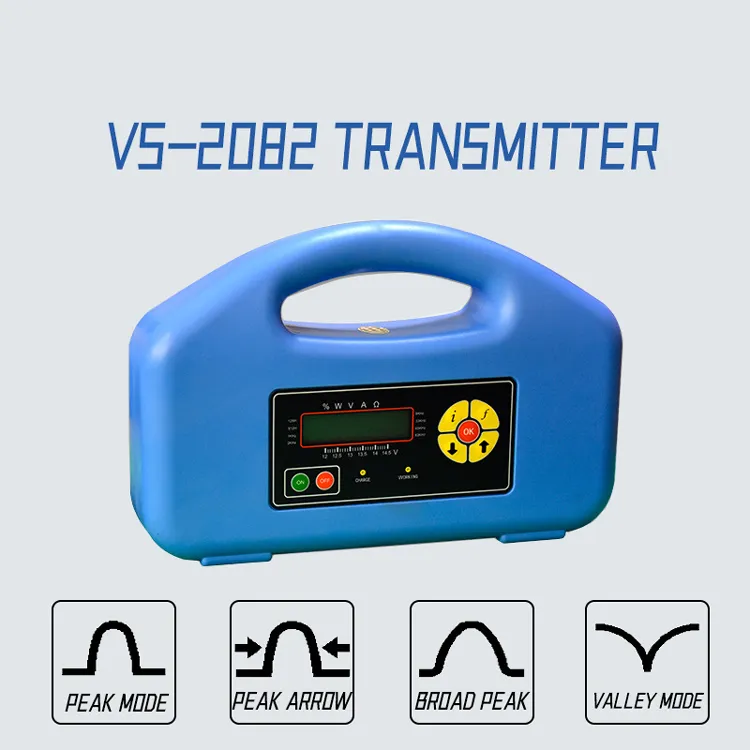

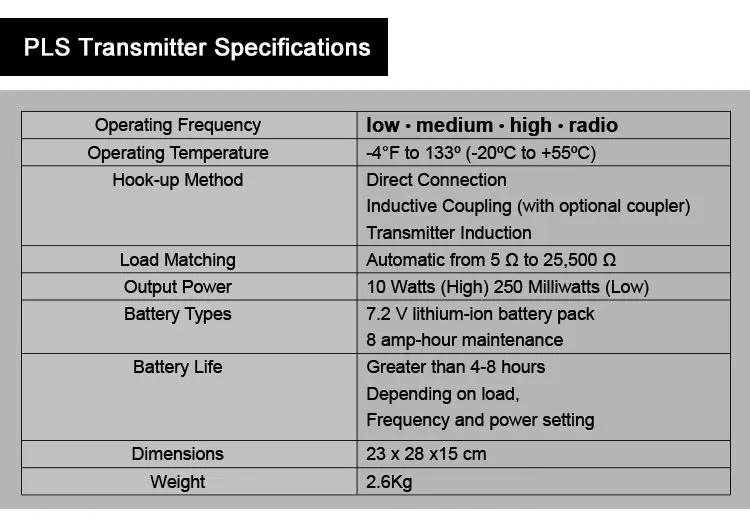

| Transmitter Specifications | |
|---|---|
| Operating Frequency | low • medium • high • radio |
| Operating Temperature | -4°F to 133º (-20ºC to +55ºC) |
| Hook-up Method | Direct Connection, Inductive Coupling, Transmitter Induction |
| Load Matching | Automatic from 5 ohm to 25,500 ohm |
| Output Power | 10 Watts (High) / 250 Milliwatts (Low) |
| Battery Types | 7.2 V lithium-ion battery pack (8 amp-hour) |
| Battery Life | Greater than 4-8 hours (depending on load/frequency) |
| Dimensions | 23 x 28 x 15 cm |
| Weight | 2.6Kg |
