Technical Parameters: OEM and ODM services are available with our professional engineer team.

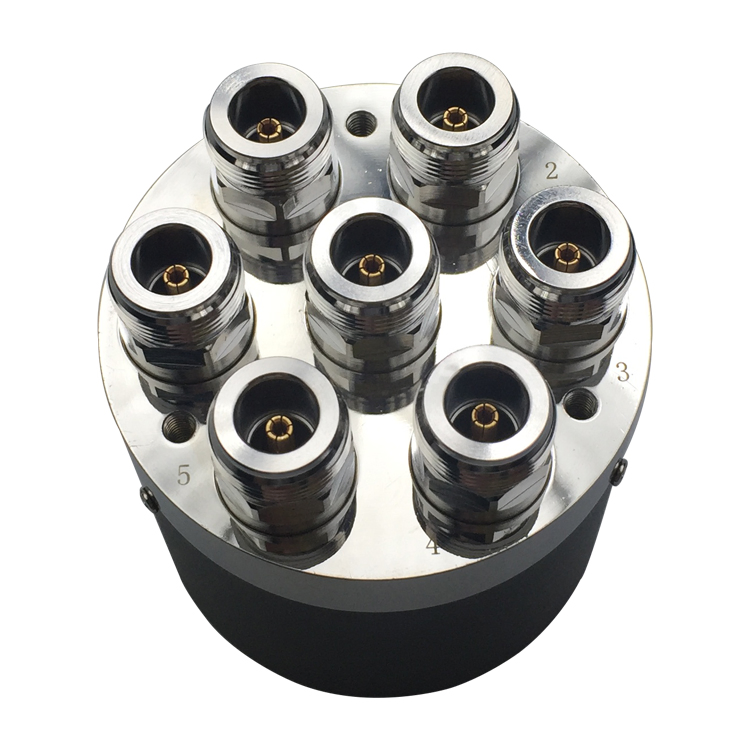

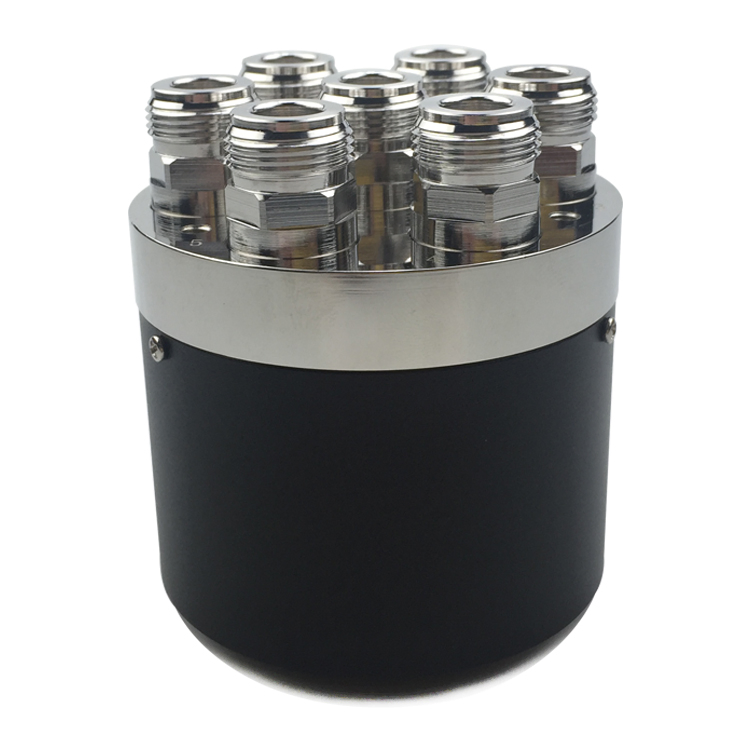

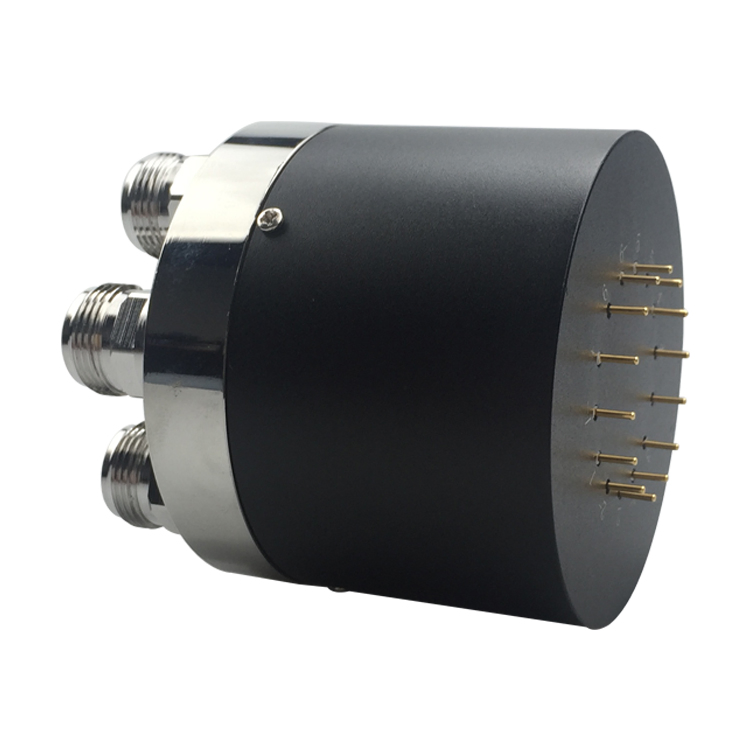

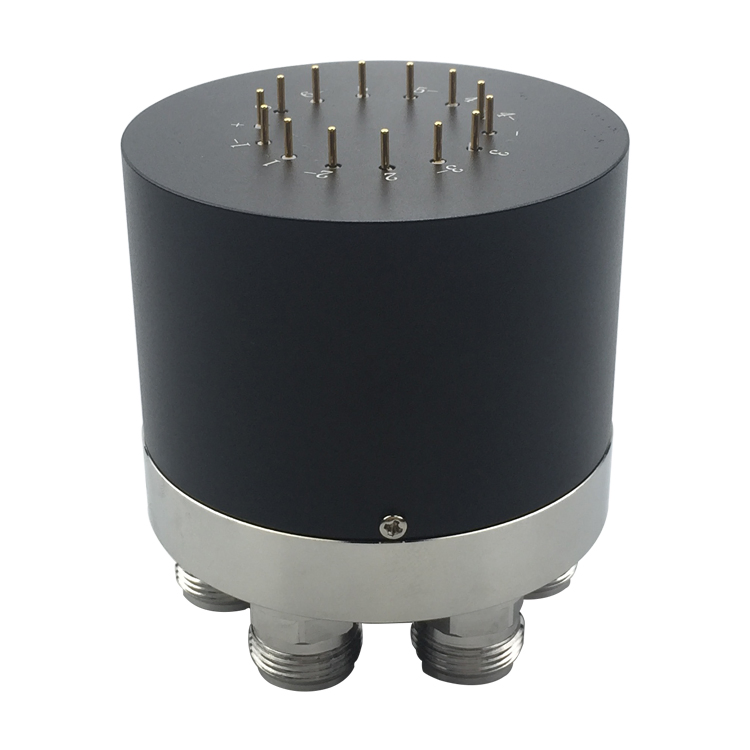

SP6T_N Series: N type single pole six-throw radio frequency electromechanical switch.
The SP6T RF coaxial electromechanical switch with interface type N has excellent reliability and high performance. It can switch one signal from the common port to one of the other 6 output ports, and the operating frequency is from DC to 12.4GHz. Widely used in RF measurement, testing, broadband wireless communications, and automated test equipment.

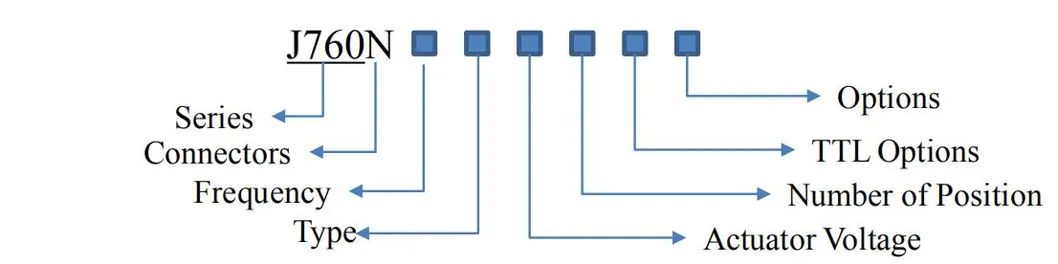

| Connectors | Frequency | Type | Actuator Voltage |
|---|---|---|---|
| N Female | Up to 3GHz / 6GHz / 12GHz | Normally Open / Latching | 12V / 24V |
| Frequency (GHz) | VSWR (Max) | Insertion Loss (Max) dB | Isolation (Min) dB | Impedance (Ω) |
|---|---|---|---|---|
| DC ~ 3 | 1.20 | 0.20 | 80 | 50 |
| 3 ~ 6 | 1.35 | 0.35 | 70 | |
| 6 ~ 12.4 | 1.50 | 0.50 | 60 |

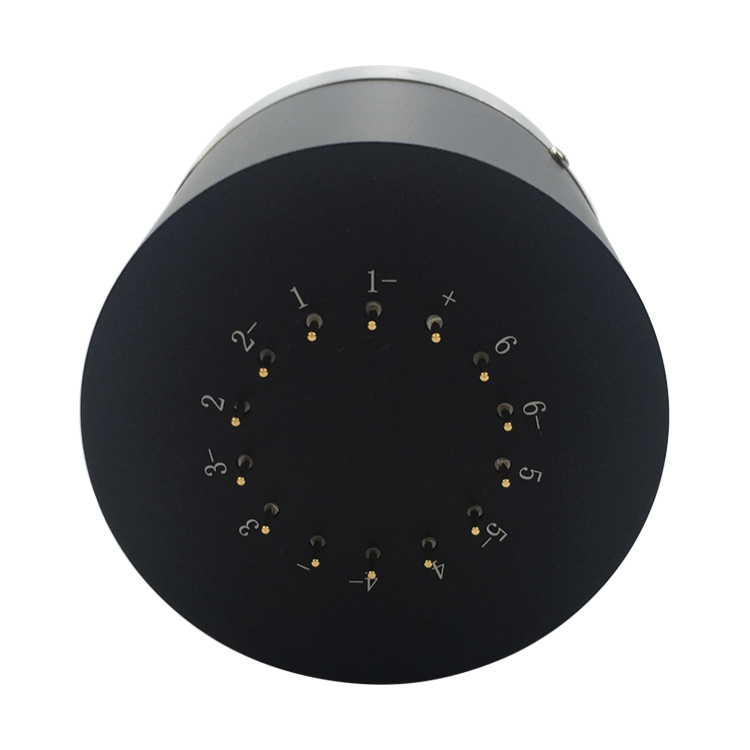

| Pin No. | Normally Open | NO with TTL | Latching | Latching with TTL |
|---|---|---|---|---|
| 1-6 | Vn(Jn-COM) | An(Jn-COM) | Vn(Jn-COM) | An(Jn-COM) |
| 7 | GND | GND | GND | GND |
| 14 | GND_I | GND_I | GND_I | GND_I |
| 15 | / | VCC | / | VCC |
