Customization: Available
Noise: <95dB
Hi-Fi: Hi-Fi
Send Inquiry

Product Description

Basic Info.
Model NO.
Q-215B
Activity
Passive
Operation Mode
Wire / Remote Control
Speaker System
Optional Combination
Speaker Material
Wood
Application
Commercial, Home
Certification
CE, RoHS, CCC, FCC, ETL, MET
Type
Two-Way, Full Range System
Power Handling
800W(RMS)1600W(Peak)
Frequency Response
48Hz -18kHz ± 3db
Nominal Impedance
4 Ohm
Enclosure
Plywood
Origin
China
Capacity
10000 Pieces Per Month
Product Description

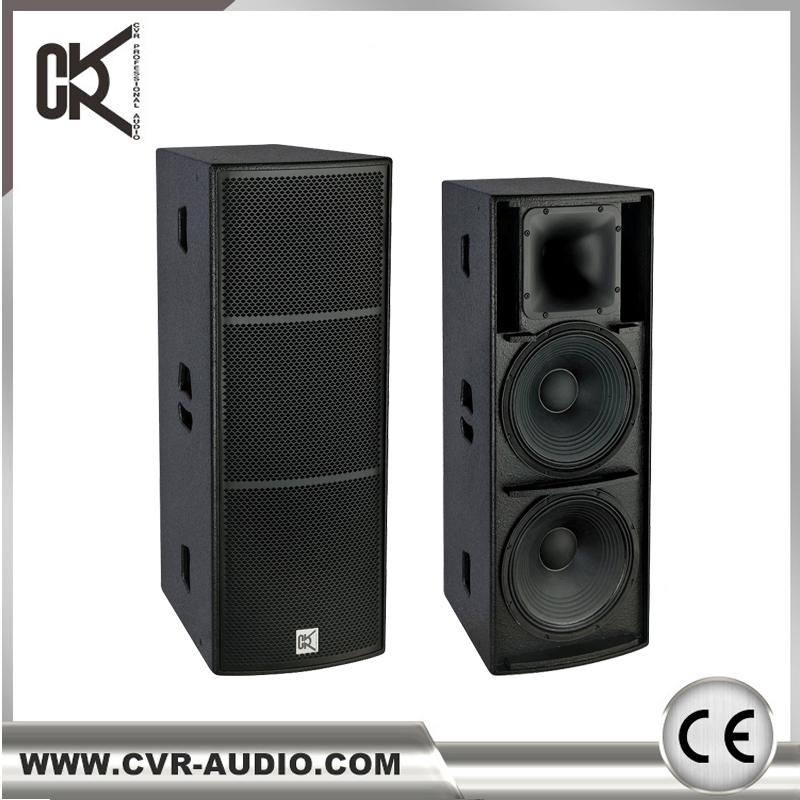

The Q-215B is a professional 2-way, full range loudspeaker system. It features two high-efficiency 15" woofers and one 2.5" titanium compression driver housed in a compact plywood enclosure. This combination delivers smooth dynamic full-frequency performance and high power output. It is particularly suitable for clubs, theaters, halls, discos, and conference environments.

⭐ Key Features

✔ Detachable front dolly panel for easy transport.
✔ High fidelity sound, extreme durability, and light weight.
✔ Three-way large format line array module design.
✔ 15" loudspeaker utilizing neodymium magnet technology.
✔ Captive rigging system integrated into the quality birch plywood cabinet.

💎 Unique Advantages

◈ Green Paint finish for low environmental pollution.
◈ Flat aluminum wire used in the woofer for superior performance.
◈ Textured, durable birch plywood construction.
◈ Neutrik plugs for reliable, repeated connectivity.
◈ Imported loudspeaker cones with excellent elasticity.
Technical Specifications
ModelQ-215B
TypeTwo-way, full range system
Frequency Response48Hz -18kHz ± 3dB
Power Handling800W(RMS) / 1600W(PEAK)
Sensitivity101dB(1W@1M)
Max SPL130dB(PEAK/1M)
LF Section2×15"(380mm) woofer, 75mm(3in) coil
HF Section2.5" compression driver with 63mm titanium diaphragm
Nominal Impedance4 ohm (LF) / 8 ohm (HF)
Dispersion Pattern80°H × 50°V
Input Connectors2×NL4MP Speakon
Dimensions432×1120×496mm (W×H×D)
Net Weight44kg
Product Visuals
Loudspeaker View 1
Loudspeaker View 2
Loudspeaker View 3
Loudspeaker View 4
Loudspeaker View 5
Loudspeaker View 6
Frequently Asked Questions
Q1: What are the primary applications for the Q-215B speaker?
The Q-215B is ideal for high-demand environments such as theaters, clubs, concert halls, discos, and large-scale conference rooms where powerful, full-range audio is required.
Q2: What is the power handling capacity of this system?
This model supports a continuous power handling of 800W (RMS) and can handle peak power surges of up to 1600W.
Q3: What materials are used for the speaker enclosure?
The cabinet is constructed from high-quality birch plywood and finished with a durable, textured black green-paint, ensuring both longevity and environmental friendliness.
Q4: Does this speaker feature a passive or active design?
The Q-215B is a passive loudspeaker system, meaning it requires an external power amplifier to operate.
Q5: What type of drivers are included in the Q-215B?
It is equipped with two high-efficiency 15-inch woofers for low frequencies and one 2.5-inch titanium compression driver for high frequencies.
Q6: What certifications does this product hold?
The system is fully certified with CE, RoHS, CCC, FCC, ETL, and MET standards, ensuring compliance with international safety and quality regulations.
