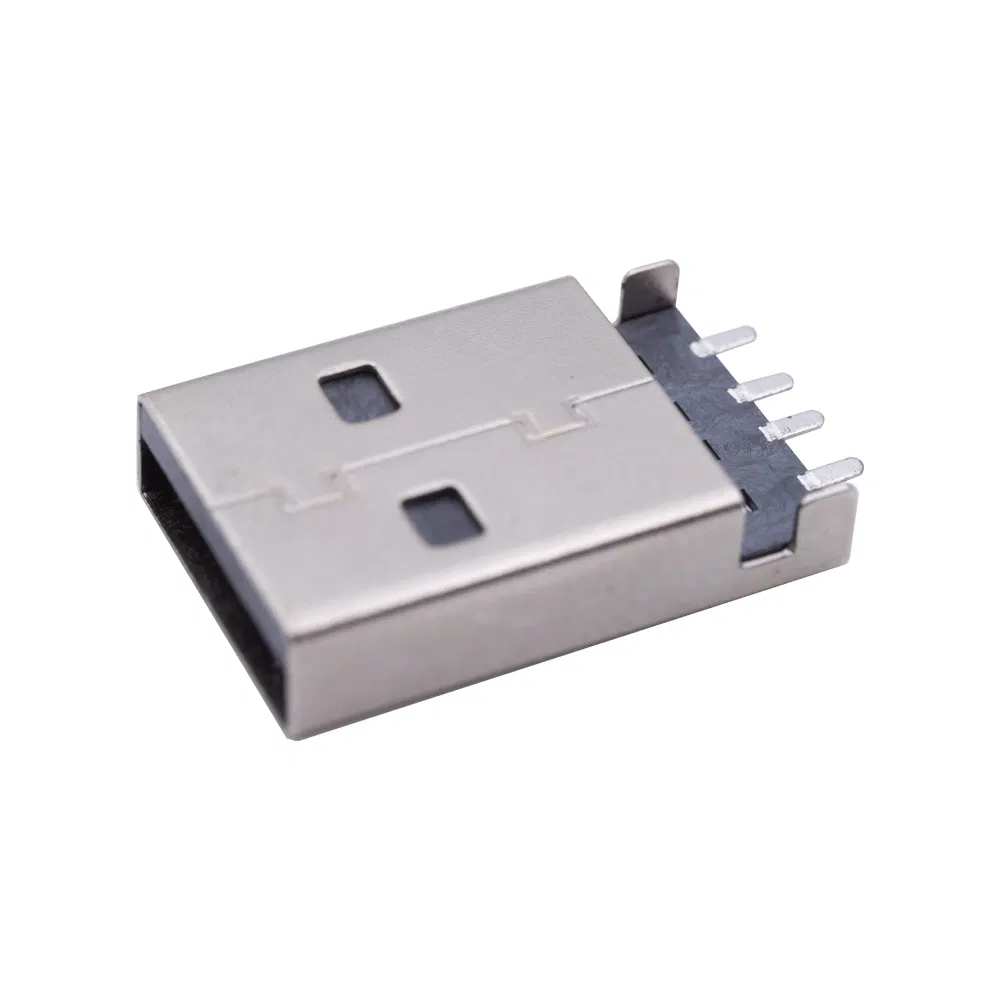

Right Angle USB Connector Header for Streamlined Sinking Solutions

Right Angle Sinking Header Connector

A Right Angle Sinking Header is a specialized electronic connector designed for compact PCB (Printed Circuit Board) assemblies, featuring:

• 90° Angled Pins: Terminals bent at a right angle to enable perpendicular connection between PCBs or between a PCB and a component, optimizing space in confined layouts.
• Sinking Design: The header's mounting interface is recessed or "sunk" relative to the PCB surface, creating a low-profile assembly. This design reduces the overall height of the connector above the board, typically by a specified sinking depth (e.g., 1.0mm to 3.0mm).
• Space Optimization: Allows horizontal-to-vertical signal routing, ideal for stacked PCBs or edge-mounted components in thin devices like wearables and tablets.
• Mechanical Stability: Recessed mounting provides stress relief during handling or vibration, minimizing risks of pin bending or detachment.

• Smartphones, laptops, and tablets (internal FPC/FFC connections).
• Audio/Video devices (e.g., headphone jacks, HDMI ports).
• Control panels, sensors, and automotive sub-assemblies (e.g., infotainment systems).
• Compact sensors, drones, and modular robotic components requiring dense, low-profile interconnections.
