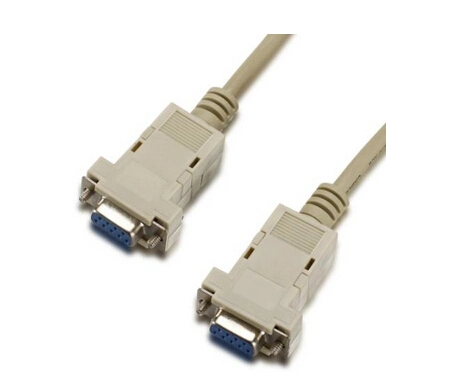

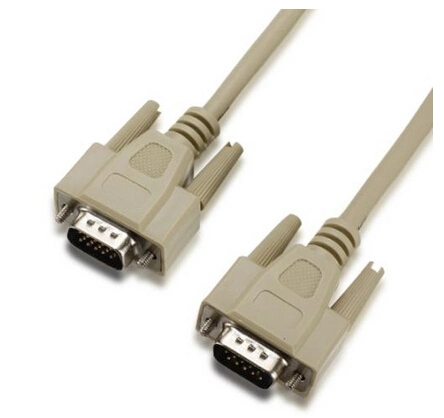

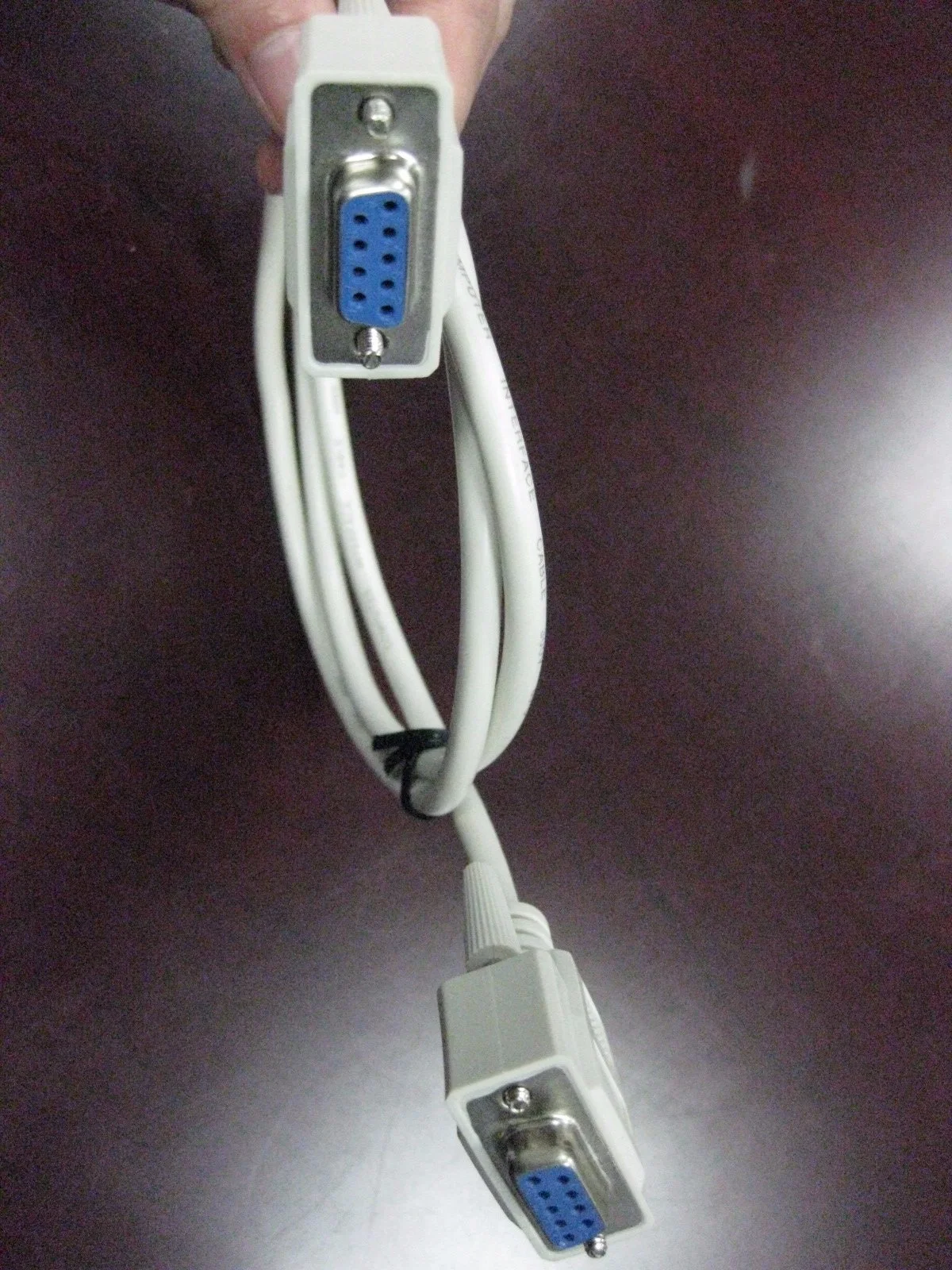

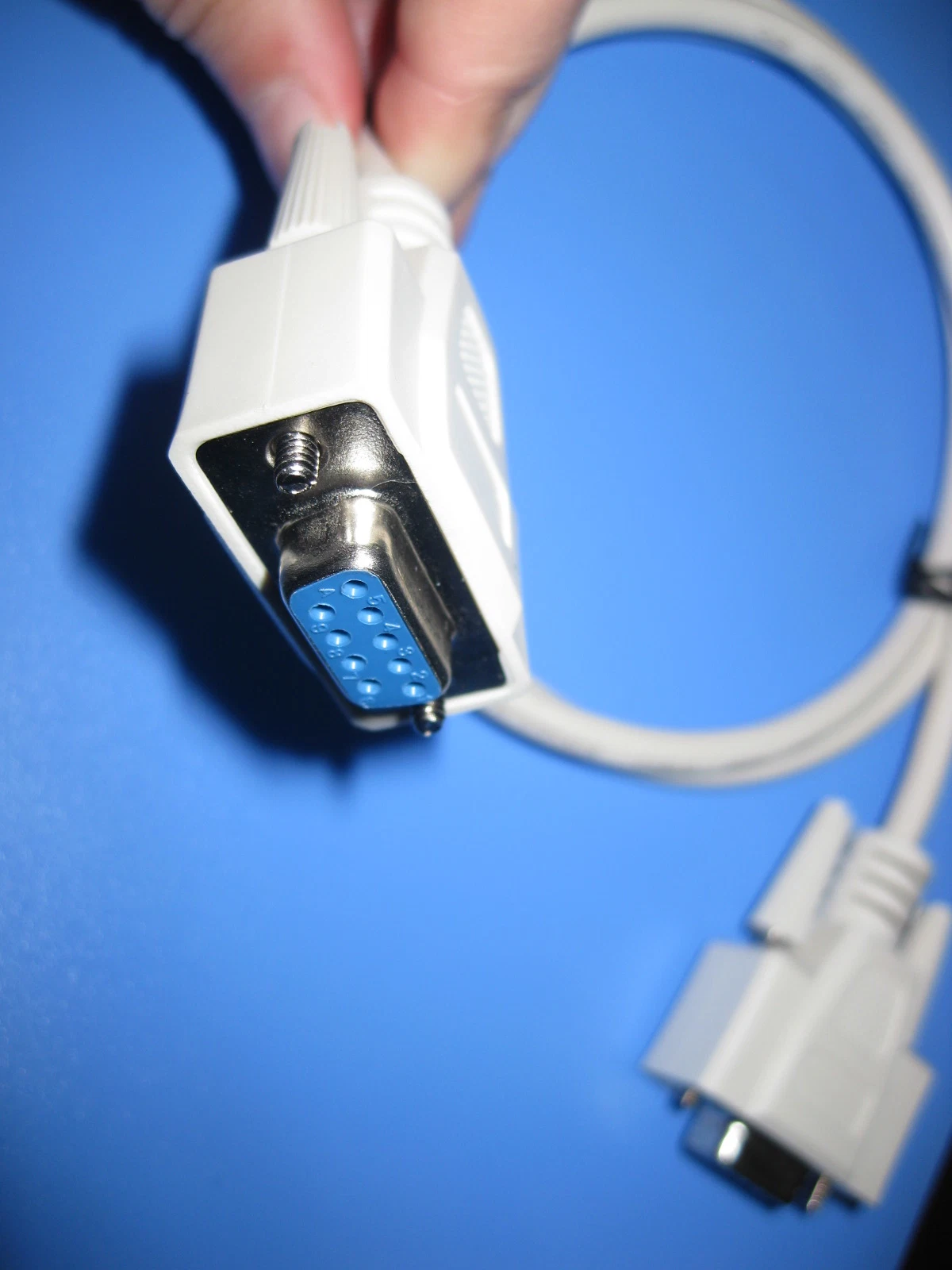

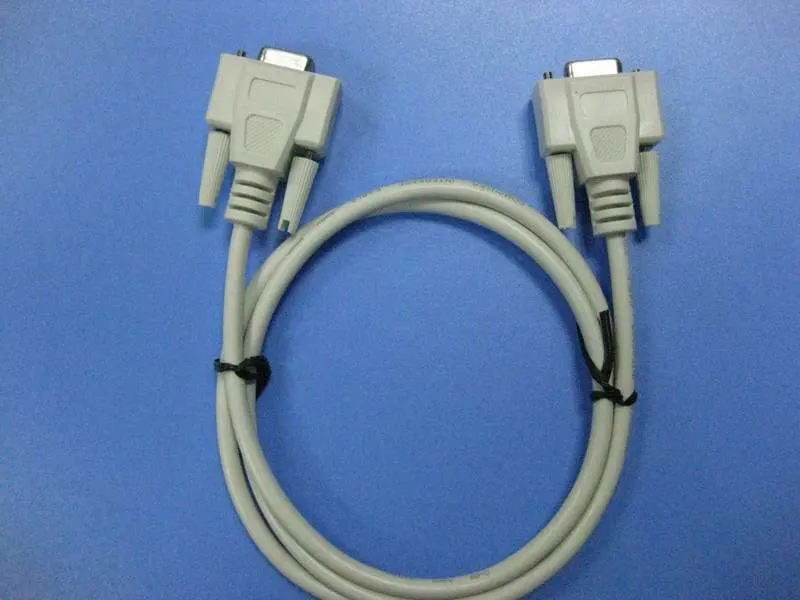

dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
1 / 5
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable
dB9 Cable 9pin Male to Female RS232 Serial Extension Cable

dB9 Cable 9pin Male to Female RS232 Serial Extension Cable

Customization: Available
Plating: Gold or Nickel
Application: Computer, Mobile Phone, Network
Send Inquiry

Product Description

i

Basic Information

Model NO.
RS232 Cable (FS-DB9)
Interface Type
DB
Material
Copper
Feature
Waterproof
Shape
Round
Computer Cable Type
Monitor Cable
Pin
9pin
Power Cable Type
RS232 Cable
Printer Cable Type
D-SUB
Color
Grey or Customized
Specification
CE, RoHS, UL
HS Code
854442
Production Capacity
10,000,000PCS Per Month
★

Product Description

DB9 female / dB9 female
Optional gold and nickel plating
5.80mm diameter wire
Assembly type
Double Shielded with AL-Foil & braid
RoHS Compliant

The DB9 serial cable is designed to connect PCs and devices equipped with a DB9 serial port. This Male to Female cable is typically utilized to extend existing connections. Fully molded connectors featuring thumbscrews provide a quick, secure, and easy connection. It supports a wide range of applications including serial printers, mice, modems, switches, video splitters, and multi-sync video applications.

⚙

Product Features

Fully shielded to prevent unwanted EMI/RFI interference.
All 9 connector pins are wired straight through for universal compatibility.
Fully molded connectors with thumbscrews ensure durable and easy connections.
Easily connects and transfers signals from various RS232 interfaces, printers, or keyboards/mice.
Extends the reach of your device connections, eliminating cable length restrictions.
📋

Technical Specifications

Item No.D-SUB Cables Series
Model NumberDB9 cable
Cable SpecUL2464 28AWG*9C+AL+B OD:5.0mm (Custom Spec available)
Length Options6ft, 10ft, 15ft, 25ft, 50ft, 75ft, 100ft (Custom available)
ColorBlack, Beige, Blue (Custom available)
Wire Gauge30AWG, 28AWG, 26AWG or options
ConductorCopper-clad steel(CCS), bare copper(BC), Tin plated copper(TC)
CertificatesRoHS, UL, CE, FCC
Plug MouldPVC molding, plastic shell, metal shell
⚡

Electrical Properties

Quality Control100% open & short test
VoltageDC300V 5M ohm/10ms
Insulation Resistance10M min
Contact Resistance2 ohm max
Working Temperature-25C to 80C
Data Transfer Rate10.2Gbps Max
Differential Impedance100±10Ω(TDR)
📸

Product Gallery

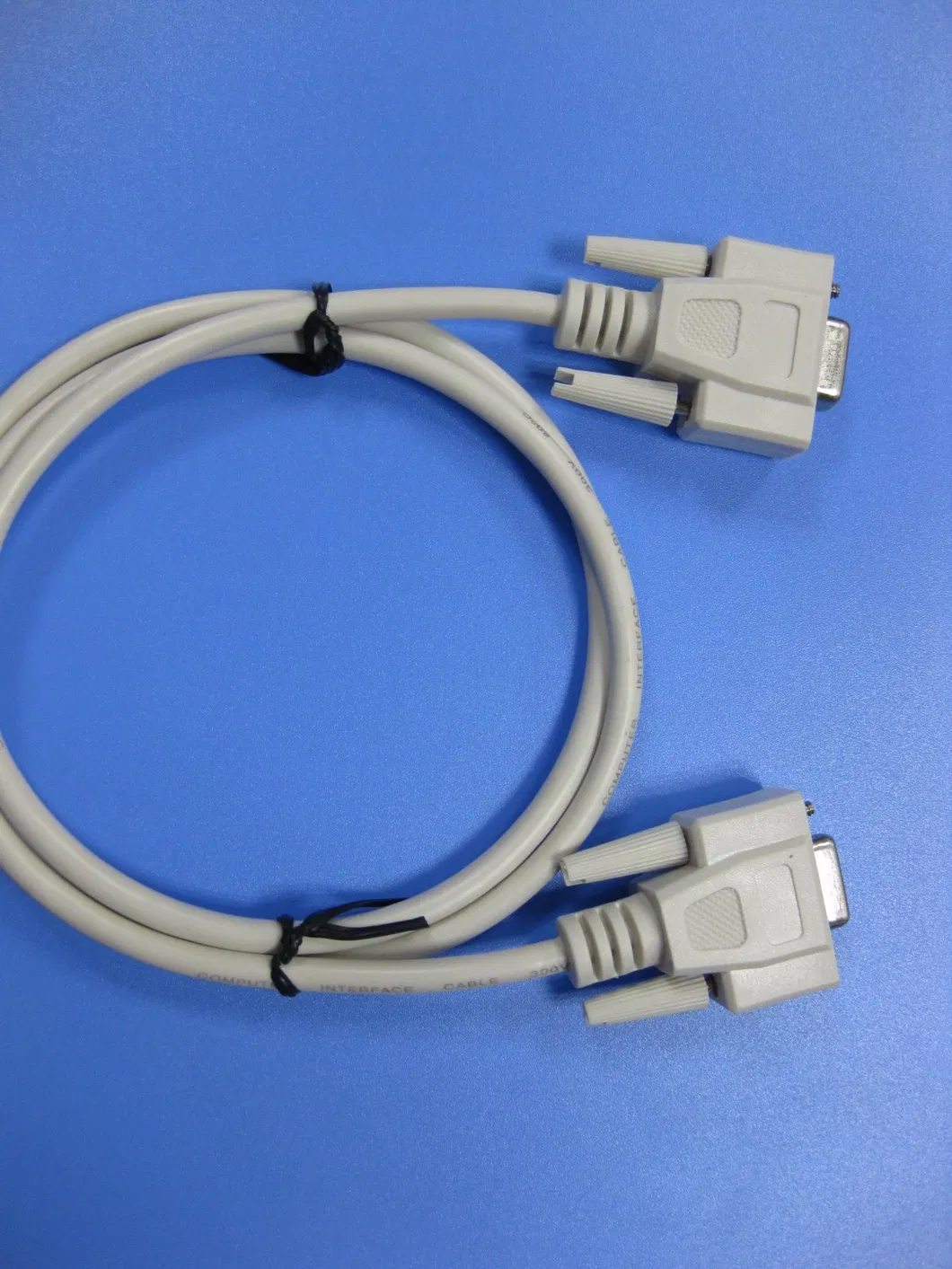

RS232 Serial Cable View 1

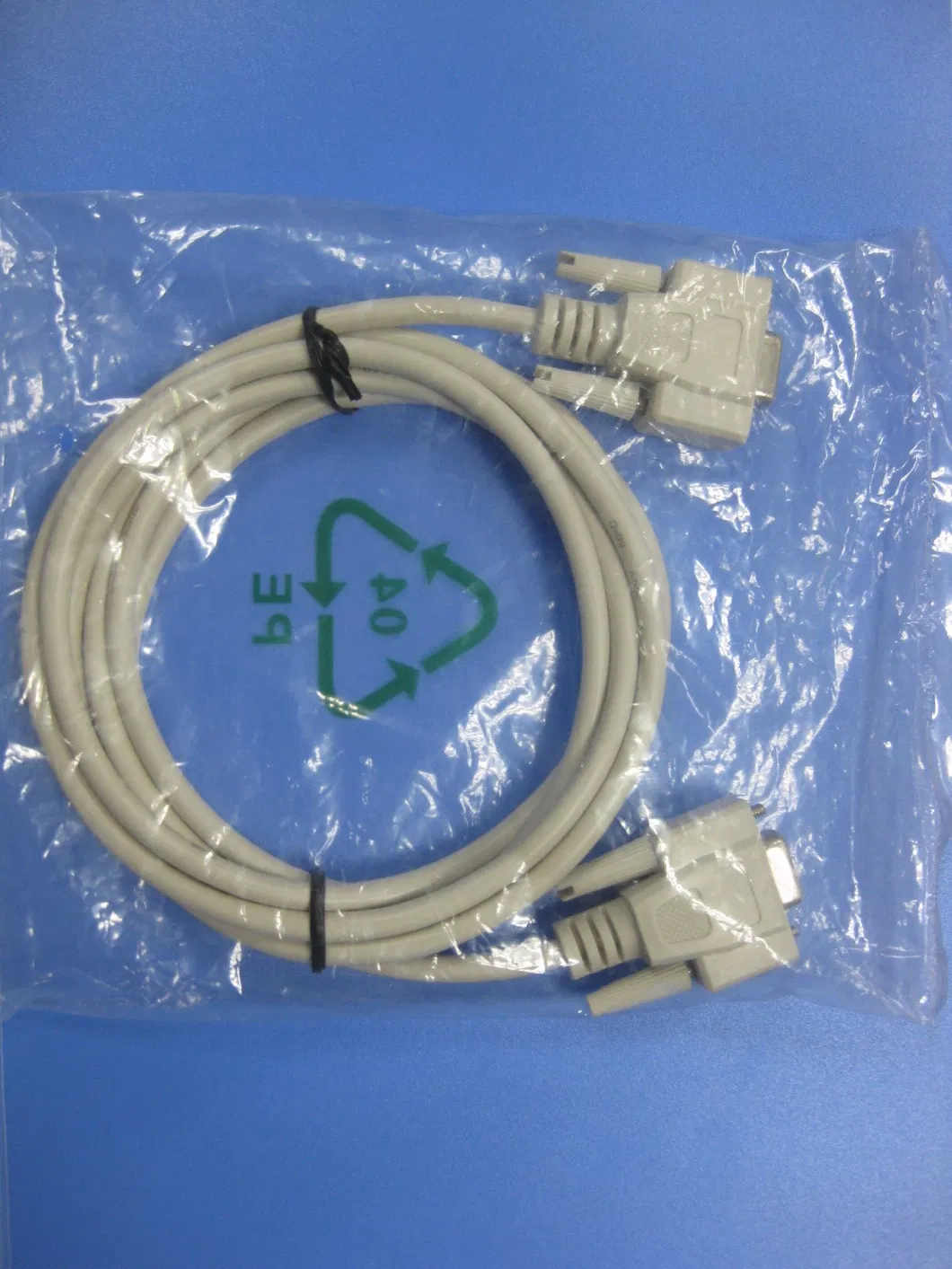

RS232 Serial Cable View 2

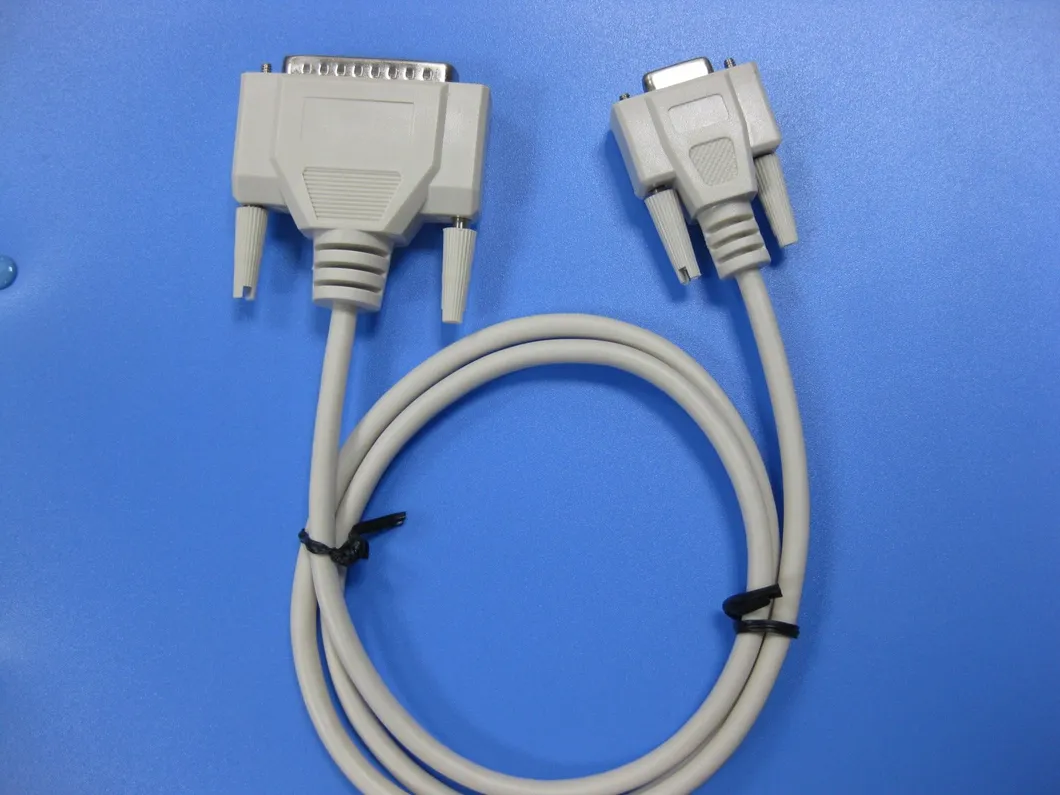

RS232 Serial Cable View 3

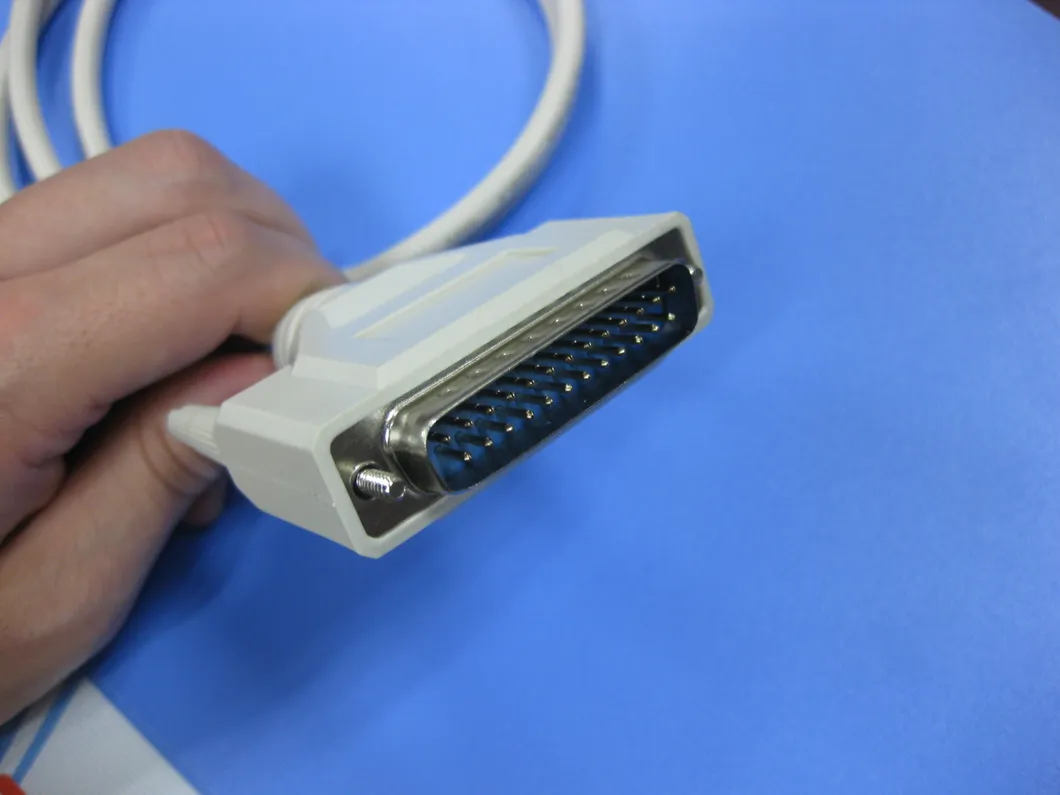

RS232 Serial Cable View 4

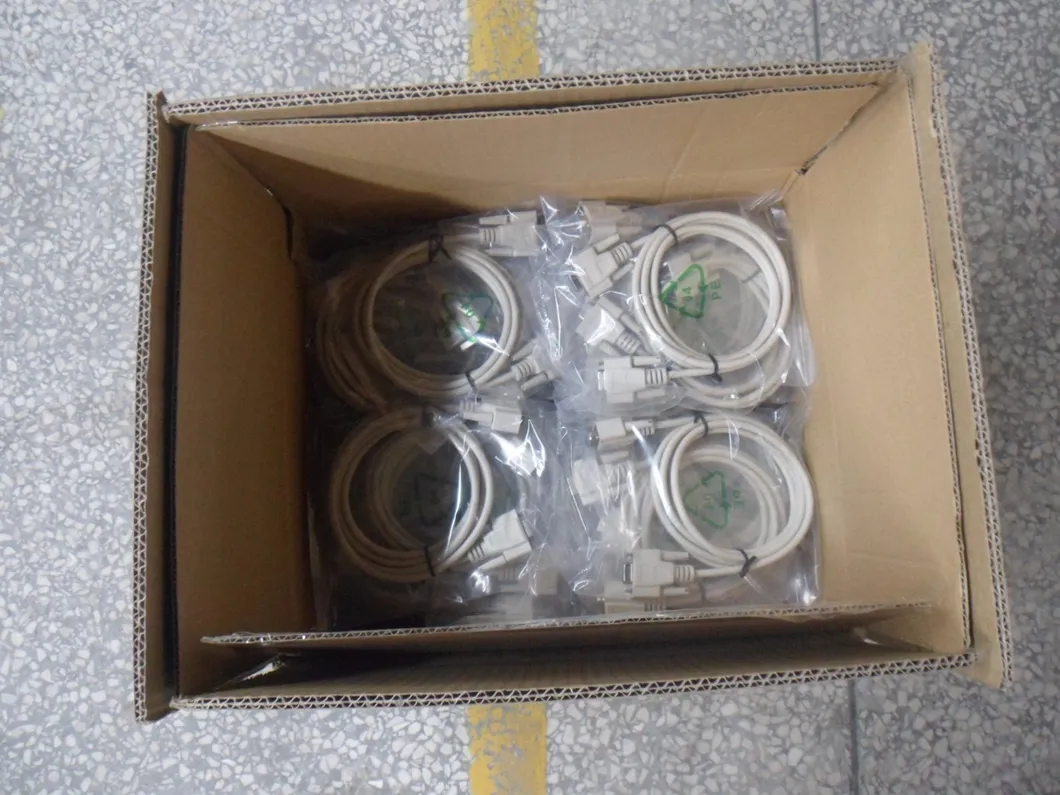

RS232 Serial Cable View 5

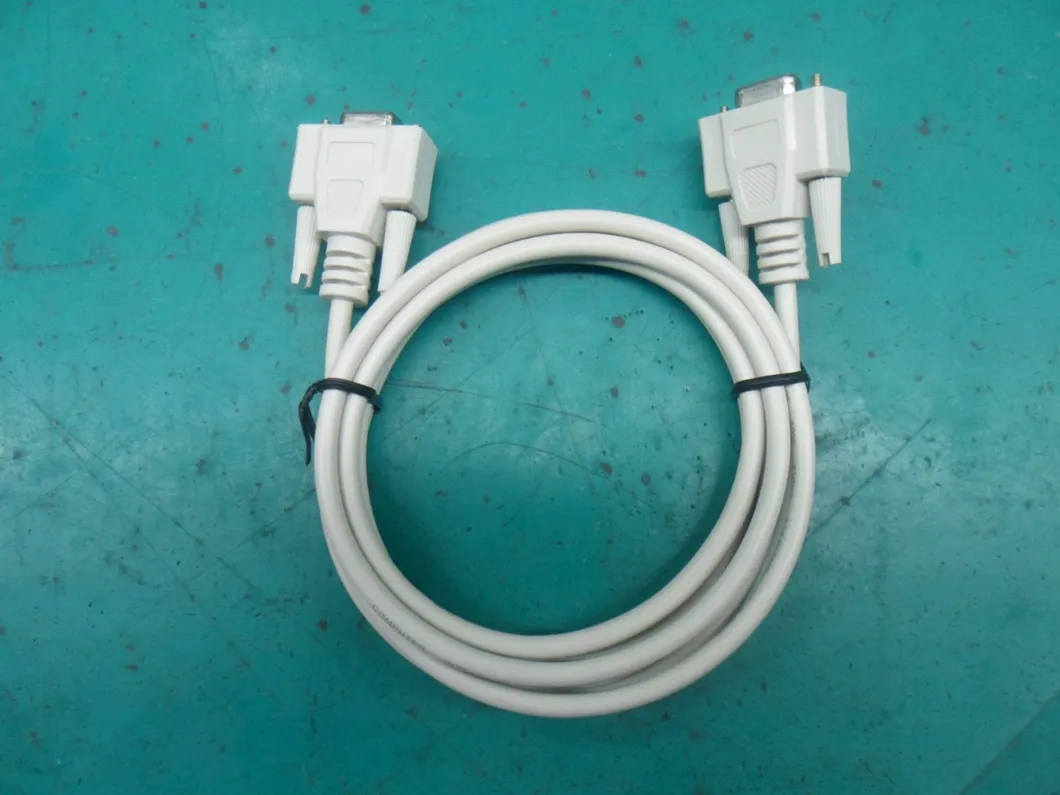

RS232 Serial Cable View 6
?

Frequently Asked Questions

What devices is this DB9 cable compatible with?
It is compatible with PCs, serial printers, mice, modems, switches, and other devices utilizing a DB9 serial port.
Does the cable protect against signal interference?
Yes, the cable is fully shielded with AL-Foil and braid to prevent unwanted EMI/RFI interference, ensuring stable data transmission.
Can I request a custom length for my specific setup?
Absolutely. We offer various standard lengths (6ft to 100ft) and can provide customized lengths based on your requirements.
What materials are used in the construction of the cable?
The cable uses high-quality copper conductors (BC/TC/CCS optional) with PVC molding and options for gold or nickel-plated connectors.
Is this product certified for international use?
Yes, our DB9 cables are RoHS, UL, CE, and FCC compliant, meeting high safety and environmental standards.
What is the data transfer speed of this serial cable?
The cable supports a maximum data transfer rate of up to 10.2Gbps, suitable for high-speed serial communication.
