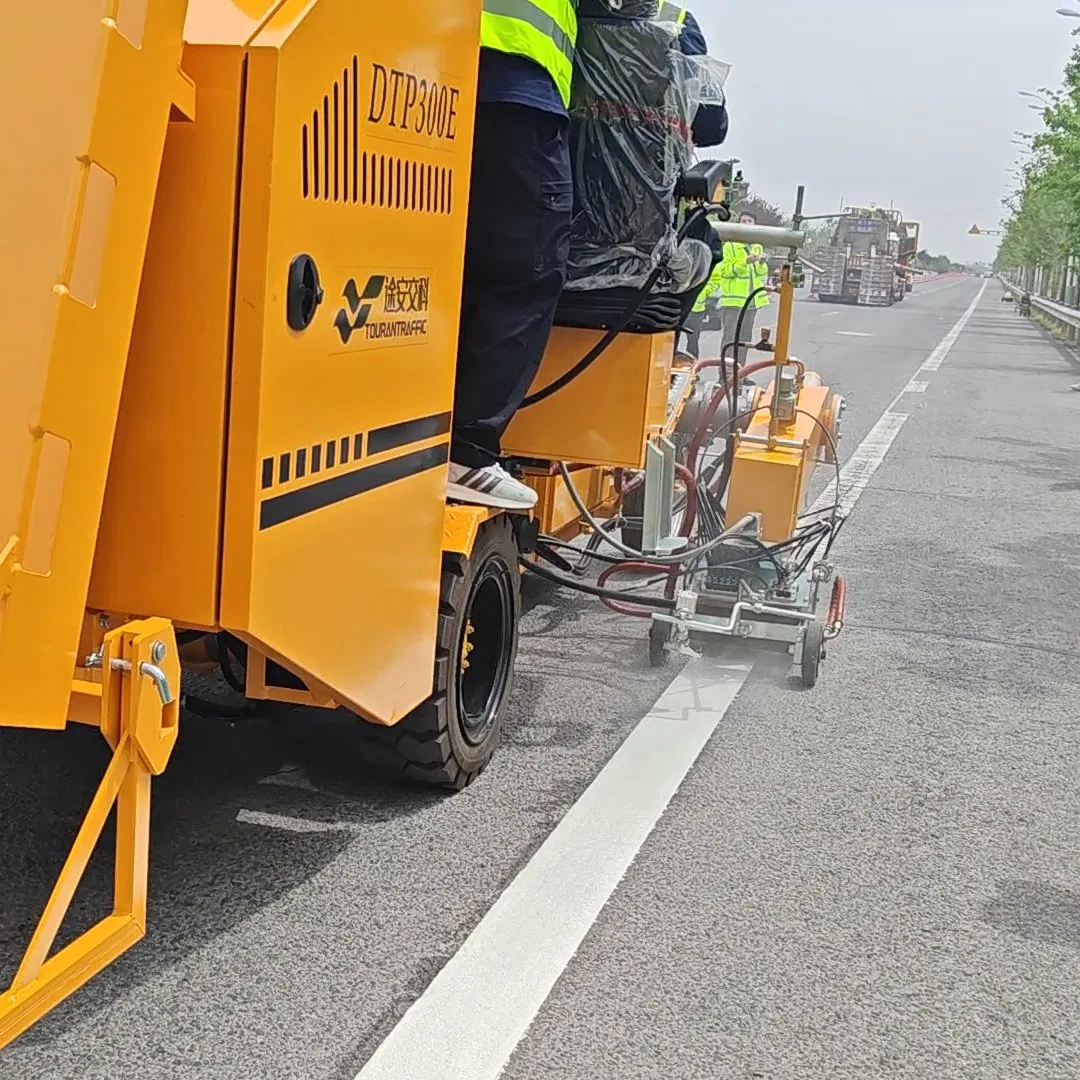

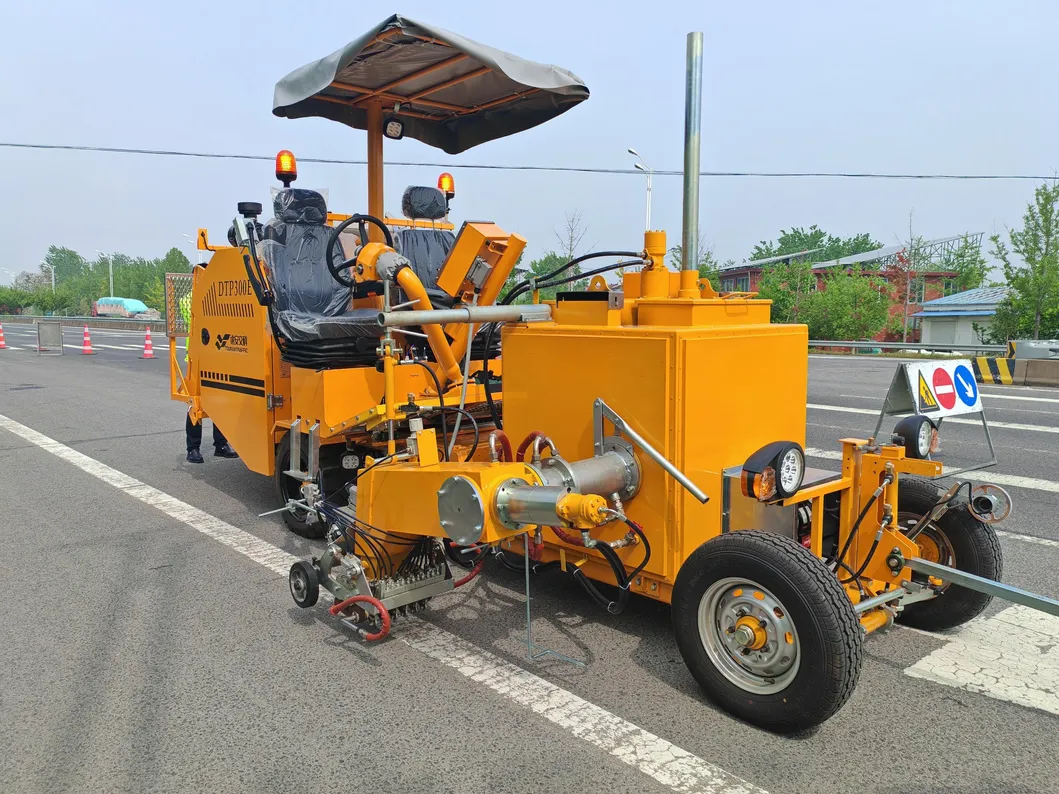

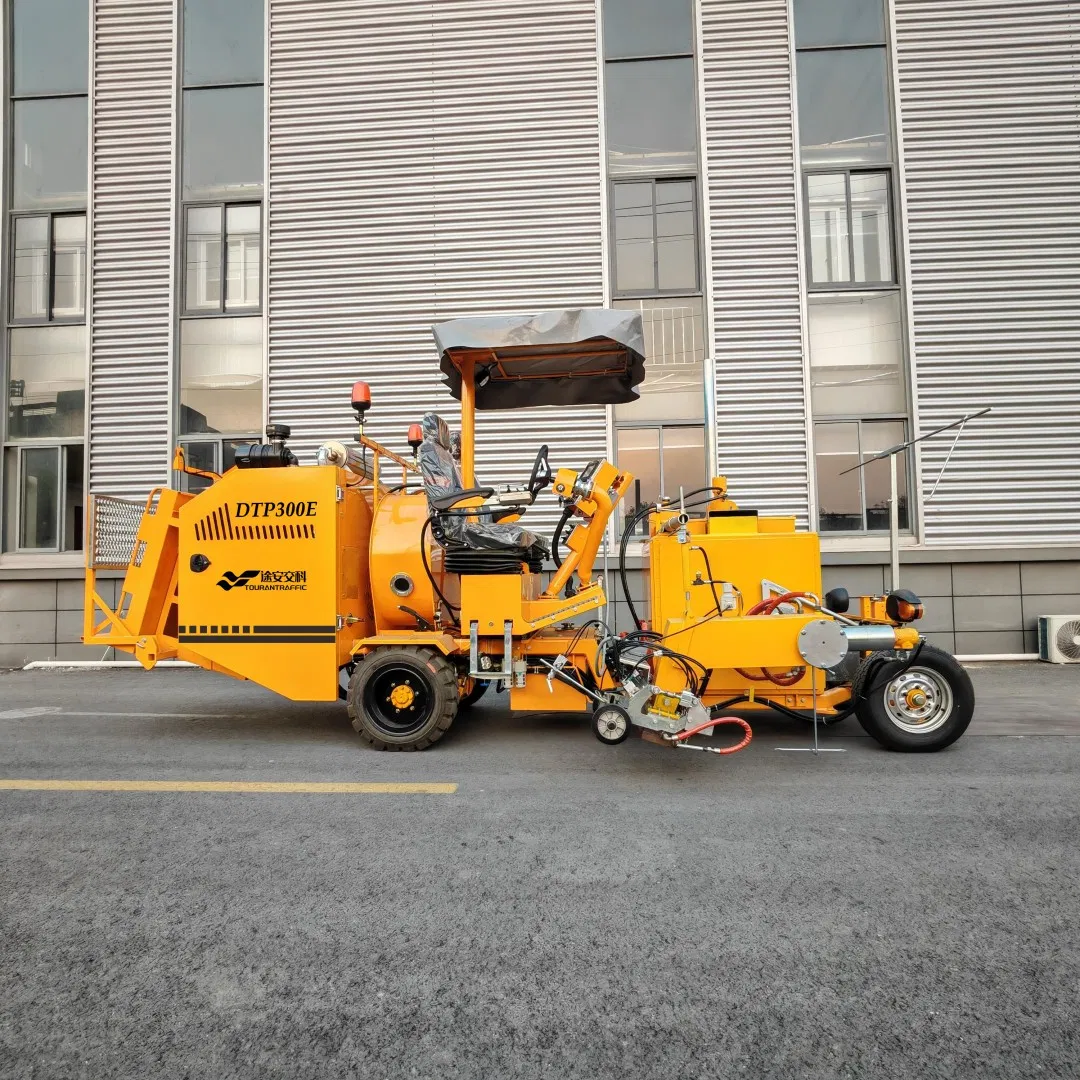

| Model NO. | DTP300E |
|---|---|
| Type | Road Marking Machine |
| Moving Type | Self-Propelled / Ride-on |
| Engine | 49.2 Kw Kubota Diesel Engine |
| Product Capacity | 1000-2000 Sq. Meter/Day |
| Paint Tank | 300L |
| Glass Beads Tank | Pressurized 150L |
| Applicable Paint | Thermoplastic Paint |
| Marking Width | 100-200mm Adjustable |
| Marking Thickness | 1.0-3.0mm |
Powerful Driving: Kubota 49.2kw diesel engine with Danfoss hydraulic system for stepless transmission.
Large Capacity: 300L material tank ensures efficient workday progression.

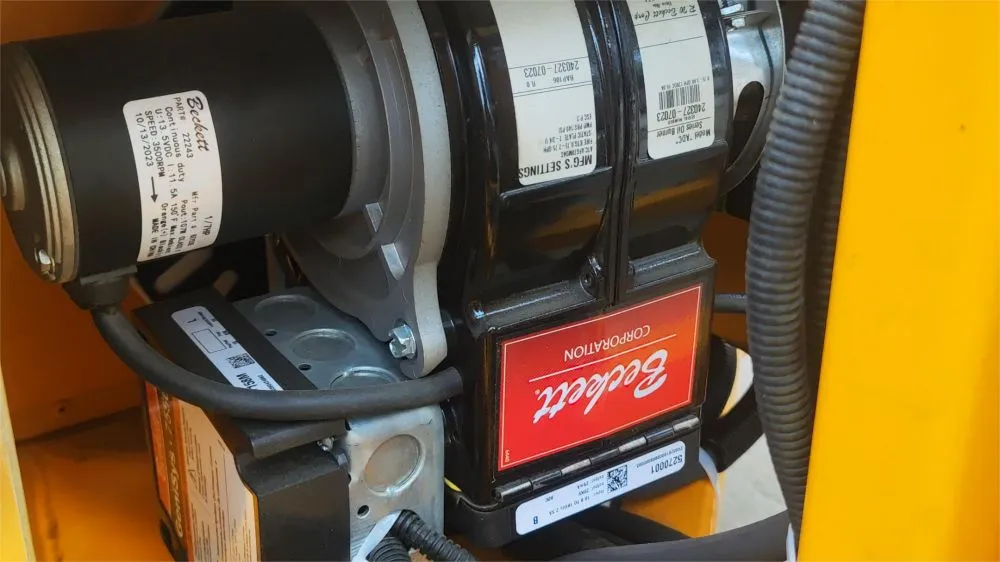

Constant Temperature: Beckett diesel injection burner with German thermal oil circulation system.
Intelligent Control: One-click operation for different line types and construction data storage.
| Specification Details | |
|---|---|
| Heating Method | Diesel injecting burner + Thermal oil circulation |
| Temperature Control | Automatic temperature control system |
| Air Compressor | 0.6m³ L/min |
| Engine Power | Kubota 4-cylinder 42Kw diesel |

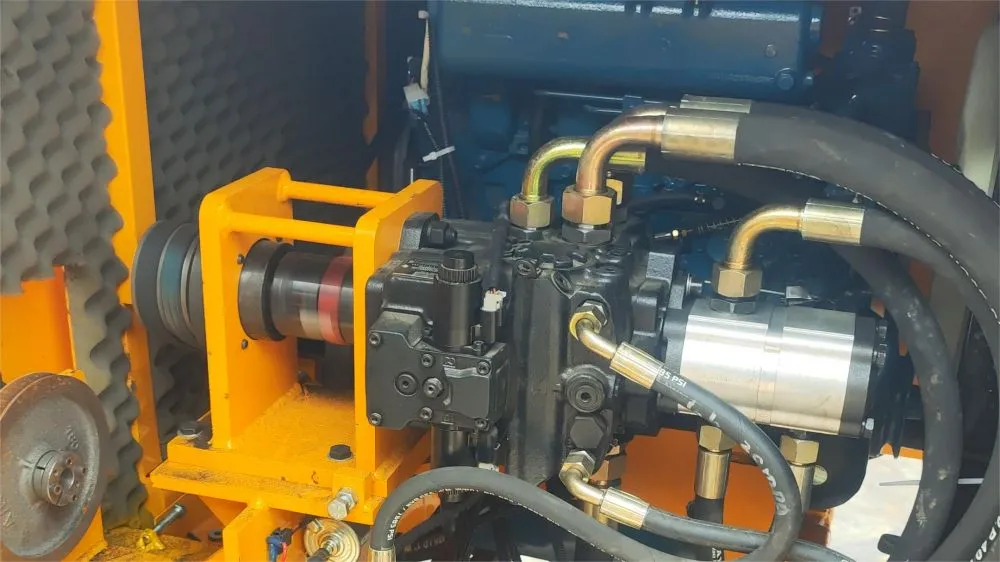

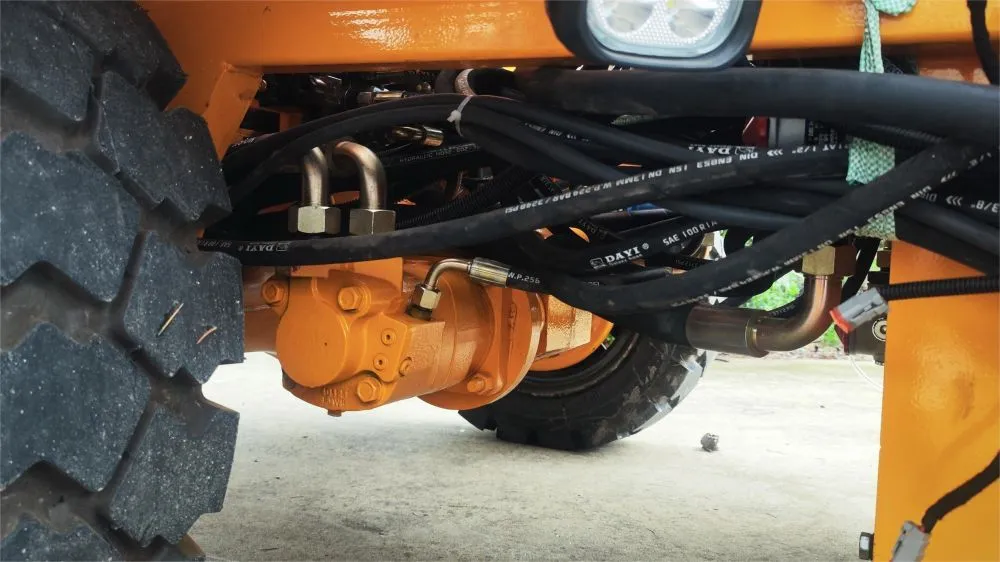

| Drive Unit | Hydraulic drive, Danfoss gear pump and motors |
| Dimensions | 4550(L) x 2200(W) x 2550(H) mm |
| Weight | Approx. 2800KG |

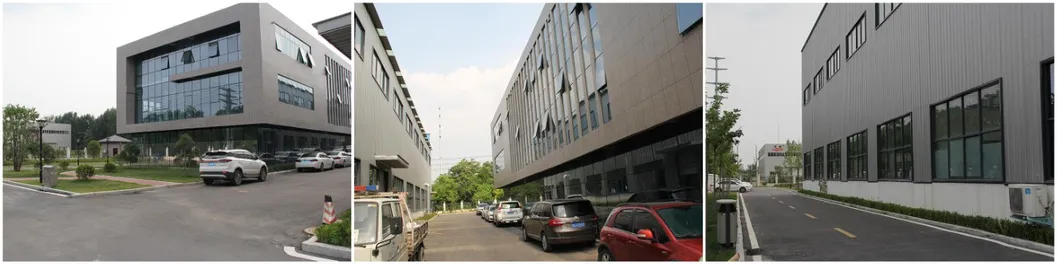

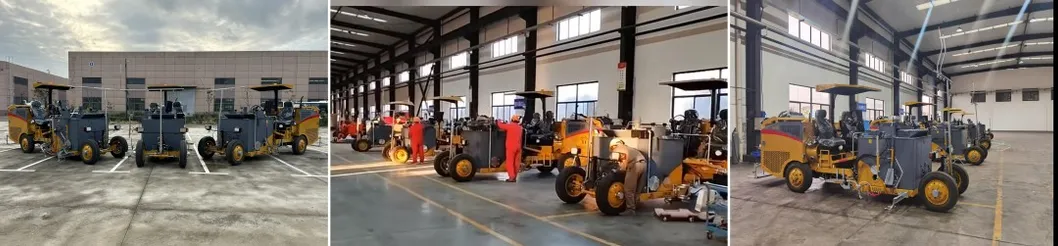

Enterprise Scale: Established three machinery factories with a total construction area of 100,000 square meters. Focused on R&D of road marking, clearing, and maintenance machinery.

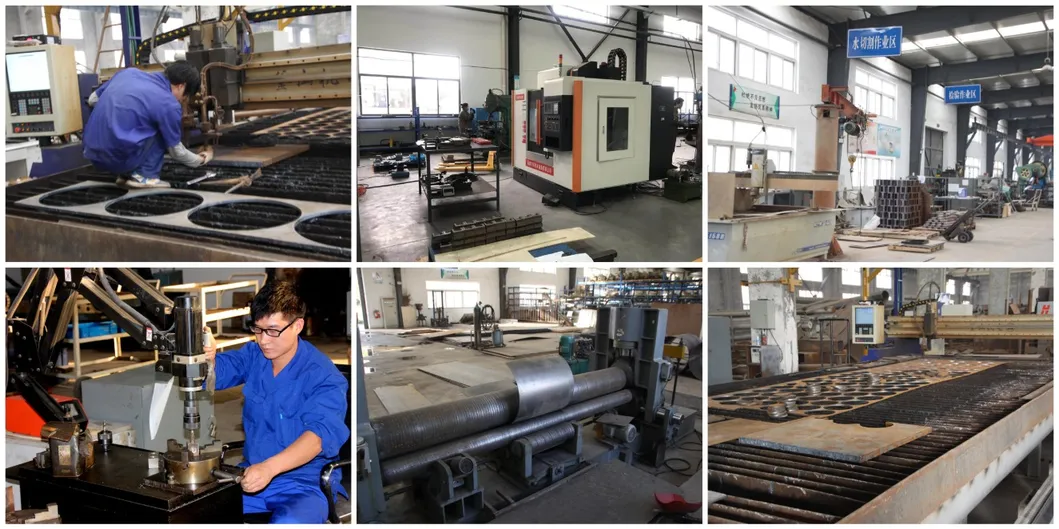

Professional Team: Over 30 sets of professional mechanical processing equipment and nearly 100 professional technical workers. Experienced management and engineering talents support continuous technology accumulation.
Global Reach: Products exported to over 35 countries across Southeast Asia, South America, Middle East, North Africa, and Europe.
